24136
Omegawax Capillary GC Column
L × I.D. 30 m × 0.25 mm, df 0.25 μm
Sign In to View Organizational & Contract Pricing.
Select a Size
Change View
About This Item
eCl@ss:
32119290
UNSPSC Code:
41115710
NACRES:
SB.54
material
fused silica
agency
meets requirements for USP G16
specific analyte(s)
acrylamide
parameter
50-280 °C temperature (isothermal or programmed)
Beta value
250
df
0.25 μm
technique(s)
gas chromatography (GC): suitable
L × I.D.
30 m × 0.25 mm
matrix active group
Bonded; poly(ethylene glycol) phase, Omegawax
application(s)
agriculture
biofuels
clinical
food and beverages
column type
capillary polar
General description

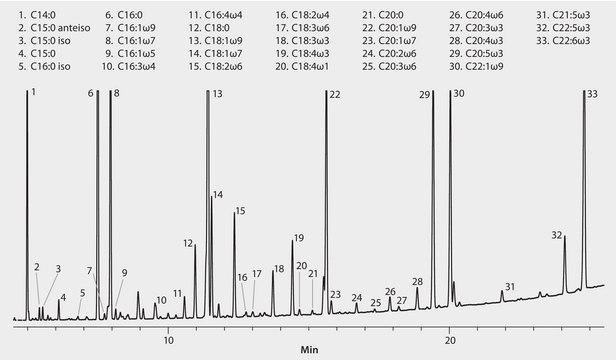

Application: This column allows highly reproducible analyses of fatty acid methyl esters (FAMEs), specifically the omega 3 and omega 6 fatty acids. It is tested to ensure reproducible FAME equivalent chain length (ECL) values and resolution of key components.
USP Code: This column meets USP G16 requirements.
Phase:
USP Code: This column meets USP G16 requirements.
Phase:
- Bonded
- Poly(ethylene glycol)
- 50 °C to 280 °C (isothermal or programmed)
Application
Capillary GC column with its coated with Omegawax 250 was used for the absorption of analytes from the aqueous sample in-tube solid-phase microextraction coupled with high-performance liquid chromatography. It may also be used in blood lipid fractions by GC-MS analysis.
Other Notes
We offer a variety of chromatography accessories including analytical syringes
Legal Information
Still not finding the right product?
Explore all of our products under Omegawax Capillary GC Column
Choose from one of the most recent versions:
Already Own This Product?
Find documentation for the products that you have recently purchased in the Document Library.
Protocols
Analyze omega 3 fatty acid profiles from fish oil capsules and salmon using GC columns for confirmatory analysis of lipid composition.
Articles
This technical article will discuss GC Analysis of a 37-Component FAME Mix on Omegawax.
R O Adlof et al.
Lipids, 35(2), 131-135 (2000-04-11)
This paper deals with the reanalysis of serum lipids from previous studies in which deuterated fatty acids were administered to a single person. Samples were reanalyzed to determine if the deuterated fatty acids were converted to deuterium-labeled conjugated linoleic acid
Automated in-tube solid-phase microextraction coupled to high-performance liquid chromatography.
Ralf E and Pawliszyn J.
Analytical Chemistry, 69 (16), 3140-3147 (1997)
Comparison of two gas-liquid chromatograph columns for the analysis of fatty acids in ruminant meat.
Susana P Alves et al.
Journal of chromatography. A, 1216(26), 5130-5139 (2009-05-19)
Two gas-liquid chromatograph capillary columns for the analysis of fatty acids (FA) in ruminant fat are compared. Those columns are the CP-Sil 88 of 100 m long with a highly polar stationary phase and the Omegawax 250 of 30 m
Global Trade Item Number
| SKU | GTIN |
|---|---|
| 24136 | 04061838080516 |
