MilliporeSigma

T3405

Sigma-Aldrich

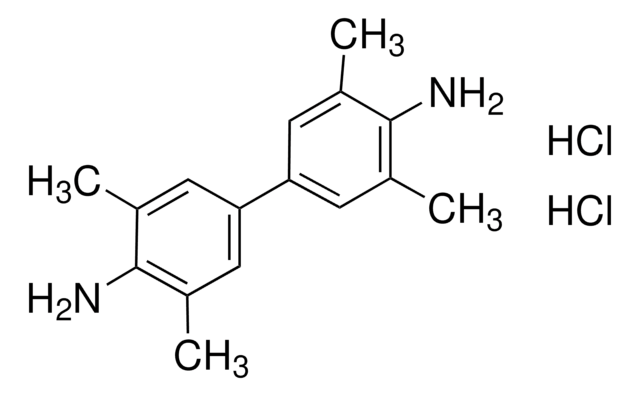

3,3′,5,5′-Tetramethylbenzidine dihydrochloride

chromogenic, tablet

Synonym(s):

4,4′-Diamino-3,3′,5,5′-tetramethylbiphenyl dihydrochloride

Sign Into View Organizational & Contract Pricing

Select a Size

About This Item

Empirical Formula (Hill Notation):
C16H20N2 · 2HCl
CAS Number:
64285-73-0
Molecular Weight:
313.27
EC Number:
264-769-6
MDL number:
MFCD00012961
UNSPSC Code:
12352204
PubChem Substance ID:
24900140
NACRES:
NA.83

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Product Name

3,3′,5,5′-Tetramethylbenzidine dihydrochloride, tablet, 1 mg substrate per tablet

Quality Level

200

form

tablet

mp

≥300 °C

storage temp.

2-8°C

SMILES string

Cl[H].Cl[H].Cc1cc(cc(C)c1N)-c2cc(C)c(N)c(C)c2

InChI

1S/C16H20N2.2ClH/c1-9-5-13(6-10(2)15(9)17)14-7-11(3)16(18)12(4)8-14;;/h5-8H,17-18H2,1-4H3;2*1H

InChI key

NYNRGZULARUZCC-UHFFFAOYSA-N

Looking for similar products? Visit Product Comparison Guide

Related Categories

Application

3,3′,5,5′-Tetramethylbenzidine (TMB) is a peroxidase substrate suitable for use in ELISA procedures. The substrate produces a soluble end product that is pale blue in color and can be read spectrophotometrically at 370 or 620-650 nm. The TMB reaction may be stopped with 2 M H2SO4 (resulting in a yellow color), and read at 450 nm.
3,3′,5,5′-Tetramethylbenzidine dihydrochloride has been used as a substrate for the
  • anti-mouse IgG (? specific) horseradish peroxidase-conjugated antibody in the ELISA of mice sera
  • anti-mouse peroxidase antibody in the protein tyrosine phosphatase assay of naive and effector T cell lysate
  • in enzymatic hydroperoxide (EH) assay and in prooxidants–antioxidants balance (PAB) assay of serum samples from diabetic patients

Storage Class

11 - Combustible Solids

wgk_germany

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

Eyeshields, Gloves, type N95 (US)

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
SLCH0851
SLCC7811
SLBS2228V
SLBQ4513V
SLBK7054V

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Yan-Qin Huang et al.
Analytical and bioanalytical chemistry, 410(28), 7385-7394 (2018-09-15)
We certify that protamine-gold nanoclusters (PRT-AuNCs) synthesized by one-pot method exhibit peroxidase-like activity. The catalytic activity of PRT-AuNCs followed typical Michaelis-Menten kinetics and exhibited higher affinity to 3,3',5,5'-tetramethylbenzidine (TMB) as the substrate compared to that of natural horseradish peroxidase. Meanwhile
Beth C Holbrook et al.
Virology, 476, 124-133 (2014-12-30)
Respiratory infection of young infants results in increased morbidity and mortality compared to infection of adults. In spite of the significance of this health issue, our understanding of the immune response elicited in infants especially in the respiratory tract is
Targeting phospho-Ser422 by active Tau Immunotherapy in the THYTau22 mouse model: a suitable therapeutic approach
Troquier L, et al.
Current Alzheimer Research, 9(4), 397-405 (2012)
Darcy S O Mora et al.
Fish & shellfish immunology, 71, 255-263 (2017-09-04)
An experimental contraceptive vaccine was evaluated in Atlantic salmon (Salmo salar). A peptide derived from the beta subunit of luteinizing hormone (LH) was conjugated to two different carrier proteins, bovine serum albumin (BSA) and keyhole limpet hemocyanin (KLH), and formulated
Thiru Vanniasinkam et al.
Methods in molecular biology (Clifton, N.J.), 1785, 121-128 (2018-05-02)
This chapter describes a strategy for mapping linear B-cell epitopes of proteins using synthetic biotinylated peptides in an ELISA.A set of overlapping peptides were designed based upon a known amino acid sequence of the target protein, VapA (Virulence-associated Protein A)
View All Related Papers

Articles

Colorimetric Phosphatase/Peroxidase Substrate Systems

NBT-BCIP substrate system aids in western blotting and immunohistological staining, producing a blue-purple insoluble end product.
