MilliporeSigma

NA1020

Sigma-Aldrich

GenElute™ PCR Clean-Up Kit

sufficient for 70 purifications

Synonym(s):

Gen Elute, PCR Purification

Sign Into View Organizational & Contract Pricing

Select a Size

About This Item

UNSPSC Code:
41106300
NACRES:
NA.52

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

usage

sufficient for 70 purifications

Quality Level

200

technique(s)

DNA purification: suitable

storage temp.

15-25°C

Related Categories

General description

Click here to view the kit protocol
The GenElute PCR Clean-Up Kit is designed for rapid purification of single-stranded or double-stranded PCR amplification products (100 bp to 10 kb) from other components in the reaction, such as excess primers, nucleotides, DNA polymerase, oil and salts. This kit combines the advantages of silica binding with a convenient spin column format, eliminating the need for expensive resins or toxic organic compounds such as phenol and chloroform.

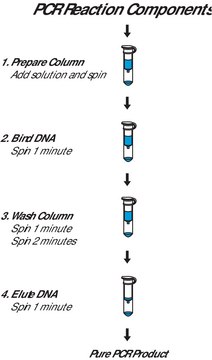

DNA is bound on a silica membrane within the spin column. The bound DNA is washed and the clean, concentrated DNA is eluted in the buffer of choice. Each column can purify up to 100 μL or 10 μg of PCR amplified DNA and recover up to 95% of PCR products between 100 bp and 10 kb. More than 99% of the primers and most primer-dimers (<40 bp) are removed.

Purified DNA can be used in enzymatic reactions, conventional or automated sequencing, cloning and microarray analysis.

Application

GenElute™ PCR Clean-Up Kit has been used for rapid purification of single-stranded or double-stranded PCR amplification products (100bp to 10kb) from other components in the reaction.
Purified DNA can be used in enzymatic reactions, conventional or automated sequencing, cloning and microarray analysis.

Biochem/physiol Actions

The GenElute PCR Clean-Up Kit combines the advantages of silica binding with a microspin format. The DNA is bound on a silica membrane within the spin column. The bound DNA is washed and the clean, concentrated DNA is eluted in the buffer of choice. Each column can purify up to 100 μL or 10 μg of PCR amplified DNA and recover up to 95% of PCR products between 100 bp and 10 kb. More than 99% of the primers and most primer-dimers (<40 bp are removed).

Features and Benefits

  • Purifies up to 100 μl or 10 μg of PCR amplified DNA in 8 minutes
  • Recovers up to 95% of PCR products between 100 bp and 10 kb
  • Removes over 99% of primers and other components
  • Eliminates the need to remove mineral oil by organic extraction
  • 40% more purification preps supplied than market leader
  • Recovers up to 95% of PCR products between 100 bp and 10 kb
  • Purifies up to 100 μL or 10 μg of PCR amplified DNA in 8 minutes
  • Removes over 99% of primers and other components

Other Notes

The GenElute PCR Clean-Up Kit is designed for rapid purification of single-stranded or double-stranded PCR amplification products (100 bp to 10 kb) from other components in the reactions, such as excess primers, nucleotides, DNA polymerase, oil and salts. This kit combines the advantages of silica binding with a convenient spin column format, eliminating the need for expensive resins or toxic organic compounds such as phenol and chloroform.

Legal Information

GenElute is a trademark of Sigma-Aldrich Co. LLC

Kit Components Also Available Separately

Product No.
Description
SDS
  • C2112Column Preparation SolutionSDS

pictograms

CorrosionExclamation mark
GHS05,GHS07

signalword

Warning

Hazard Classifications

Acute Tox. 4 Oral - Eye Irrit. 2 - Met. Corr. 1 - Skin Irrit. 2 - STOT SE 3

target_organs

Central nervous system

Storage Class

8A - Combustible corrosive hazardous materials

flash_point_f

Not applicable

flash_point_c

Not applicable
