MilliporeSigma

31185

Sigma-Aldrich

D.E.R.™ 332

used as embedding medium

Synonym(s):

Bisphenol A diglycidyl ether, Epoxy-Resin, 2,2-Bis[4-(glycidyloxy)phenyl]propane, 4,4′-Isopropylidenediphenol diglycidyl ether, BADGE, D.E.R.™ 332

Sign Into View Organizational & Contract Pricing

Select a Size

About This Item

Empirical Formula (Hill Notation):
C21H24O4
CAS Number:
1675-54-3
Molecular Weight:
340.41
Beilstein/REAXYS Number:
299026
EC Number:
216-823-5
MDL number:
MFCD00080480
UNSPSC Code:
12161502
PubChem Substance ID:
329753672
NACRES:
NA.25

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Quality Level

200

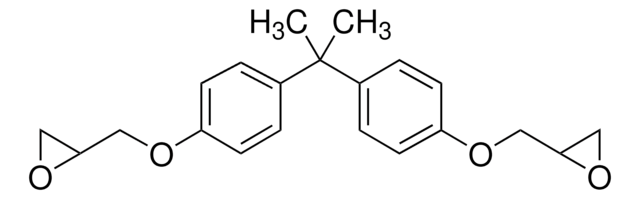

SMILES string

CC(C)(c1ccc(OCC2CO2)cc1)c3ccc(OCC4CO4)cc3

InChI

1S/C21H24O4/c1-21(2,15-3-7-17(8-4-15)22-11-19-13-24-19)16-5-9-18(10-6-16)23-12-20-14-25-20/h3-10,19-20H,11-14H2,1-2H3

InChI key

LCFVJGUPQDGYKZ-UHFFFAOYSA-N

Looking for similar products? Visit Product Comparison Guide

Related Categories

Application

The uniqueness of D.E.R. 332 epoxy resin is reflected in its maximum epoxide equivalent weight of 178. Because of its high purity and lack of polymer factions, samples embedded using D.E.R. 322 have uniform performance, exceptionally low viscosity and color; and improved elevated temperature properties.

Legal Information

D.E.R. is a trademark of The Dow Chemical Company or an affiliated company of Dow

Disclaimer

Crystallizes very slowly at room-temperature; can be melted by heating up to 50-55 °C

pictograms

Exclamation markEnvironment
GHS07,GHS09

signalword

Warning

Hazard Classifications

Aquatic Chronic 2 - Eye Irrit. 2 - Skin Irrit. 2 - Skin Sens. 1

Storage Class

10 - Combustible liquids

wgk_germany

WGK 1

flash_point_f

507.2 - 514.4 °F - closed cup

flash_point_c

264 - 268 °C - closed cup

ppe

dust mask type N95 (US), Eyeshields, Faceshields, Gloves

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
BCCH0846
BCCG5792
BCCG2414
BCCF3430
BCCD4504

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Samsul Rizal et al.
Materials (Basel, Switzerland), 12(14) (2019-07-13)
The aim of this paper is to evaluate the Mode II interfacial fracture toughness and interfacial shear strength of Typha spp. fiber/PLLA and Typha spp. fiber/epoxy composite by using a double shear stress method with 3 fibers model composite. The
Evgeniy M Chistyakov et al.
Polymers, 11(7) (2019-07-20)
The method of optical wedge revealed that the optimum temperature for compatibility of hexakis(4-acetamidophenoxy)cyclotriphosphazene (ACP) and DER-331 epoxy resin is in the range of 220-260 °C. The interdiffusion time of components at these temperatures is about 30 min. The TGA
Mengyang Hu et al.
Journal of colloid and interface science, 552, 319-331 (2019-05-28)
The aqueous dispersion of graphene oxide (GO) was employed as additive to fabricate antifouling and antibacterial polyethersulfone (PES)/sulfonated polysulfone (SPSf)/GO mixed matrix membranes (MMMs) by the non-solvent induced phase separation (NIPS). The effect of different amounts of GO on the
Zihan Xu et al.
Developmental and comparative immunology, 100, 103413-103413 (2019-06-15)
The objective of this study is to explore the immune response of the shrimp Penaeus vannamei to low temperature and air exposure during the mimic waterless transportation. Shrimp were cold shocked at 13 °C for 3 min, then exposed to air at
Wen-Jie Cheng et al.
Life sciences, 231, 116533-116533 (2019-06-08)
The aim of this study was to investigate the protective effect of chronic intermittent hypobaric hypoxia (CIHH) against skeletal muscle ischemia-reperfusion (IR) injury and to determine the underlying mechanism. C57BL/6 mice were randomly divided into 3 groups: skeletal muscle IR
