About This Item

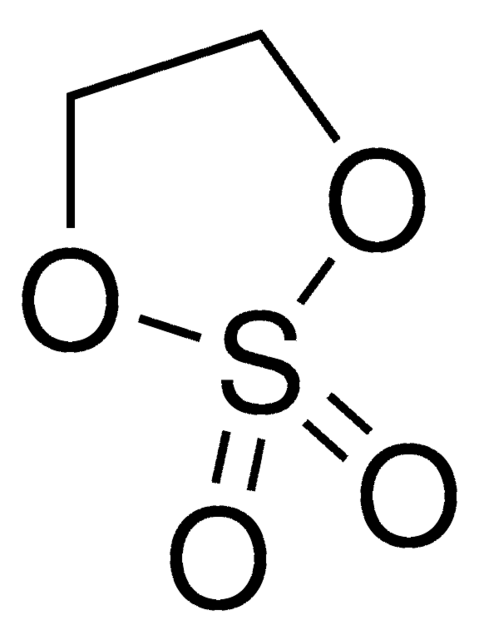

Empirical Formula (Hill Notation):
C2H4O4S
CAS Number:
Molecular Weight:
124.12
UNSPSC Code:
12352005
MDL number:
NACRES:
MA.24
Quality Level
grade
anhydrous, battery grade
assay
≥99%
form
powder
greener alternative product characteristics
Design for Energy Efficiency
Learn more about the Principles of Green Chemistry.
sustainability
Greener Alternative Product
impurities
≤750 ppm (H2O)
bp
231 °C
mp
95-97 °C (lit.)
application(s)
battery manufacturing
greener alternative category
storage temp.
2-8°C
SMILES string
O=S1(=O)OCCO1
InChI
1S/C2H4O4S/c3-7(4)5-1-2-6-7/h1-2H2
InChI key
ZPFAVCIQZKRBGF-UHFFFAOYSA-N
General description
Ethylene sulfate (DTD) is a polar cyclic sulfate ester. It is a white powder that is soluble in many of the polar organic solvents used in battery applications, including carbonates. Our battery grade ethylene sulfate is differentiated by its high purity, low trace water content, and low trace acid content, which avoid unwanted chemical reactions with the anode and increase capacity, safety, and life span in batteries
Application
Ethylene sulfate has a range of industrial applications. Our anhydrous battery grade ethylene sulfate is primarily used as an electrolyte additive to extend the lifetime of lithium-ion batteries and sodium-ion batteries.[,] Ethylene sulfate helps to improve the formation of a stable solid-electrolyte interphase (SEI) on the surface of the anode material, which can prevent reaction between the anode and the electrolyte, leading to better battery lifespan and more stable impedance across the interphase.[] DTD is often used in conjunction with other additives. One of the best-performing electrolyte formulations for graphite cells is a 1.0 M LiPF6 in a carbonate blend with 1% DTD and 2%VC.[,]
signalword
Danger
hcodes
Hazard Classifications
Acute Tox. 4 Oral - Carc. 2 - Eye Dam. 1 - Skin Corr. 1B - Skin Sens. 1B
Storage Class
8A - Combustible corrosive hazardous materials
wgk
WGK 3
flash_point_f
Not applicable
flash_point_c
Not applicable
Choose from one of the most recent versions:
Already Own This Product?
Find documentation for the products that you have recently purchased in the Document Library.
Articles
Discover the role of electrolytes in sodium-ion batteries, to enhance performance, safety, and sustainability in energy storage solutions.
Ethylene sulfate as film formation additive to improve the compatibility of graphite electrode for lithium-ion battery
Xuecheng L, et al.
Ionics, 20, 795-801 (2014)
