900442

Graphene/PEDOT:PSS hybrid ink

dispersion in DMF, avg. no. of layers, 1 ‑ 3

Synonym(s):

Conductive ink, Electrochemically exfoliated graphene ink, G/PEDOT:PSS, Graphene ink

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

NACRES:
NA.23
UNSPSC Code:
12352401
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

description

Electrodes

Quality Level

100

form

dispersion (in DMF)

feature

avg. no. of layers 1 ‑ 3

concentration

0.2 mg/mL (PEDOT:PSS), 1 mg/mL (electrochemically exfoliated graphene)

sheet resistance

500 Ω/sq, 20 nm film: 80% transmittance

General description

  • Graphene preparation method: Electrochemical exfoliation.
  • Graphene thickness by AFM: 80%, 1-3 layers.
  • Sheet size by AFM: 10 μm.
  • Oxygen content: 7.5% (by XPS) (C/O-ratio: 12.3).
  • Raman I_D/I_G ratio: 0.4.
  • Sheet resistance: 4.8 kΩ/sq.

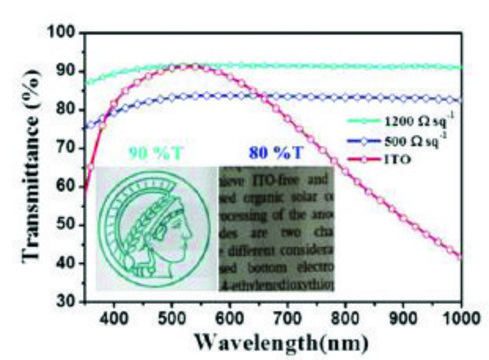

  • Typical properties of films produced thereof (after spray coating):
a) 11 nm film: 90% transmittance, 1200 Ω/sq (as made).
b) 20 nm film: 80% transmittance, 500 Ω/sq (as made).

signalword

Danger

Hazard Classifications

Acute Tox. 4 Dermal - Acute Tox. 4 Inhalation - Eye Irrit. 2 - Flam. Liq. 3 - Repr. 1B

Storage Class

3 - Flammable liquids

wgk

WGK 2

flash_point_f

136.4 °F

flash_point_c

58 °C
