794333

Sigma-Aldrich

PTB7-Th

Synonym(s):

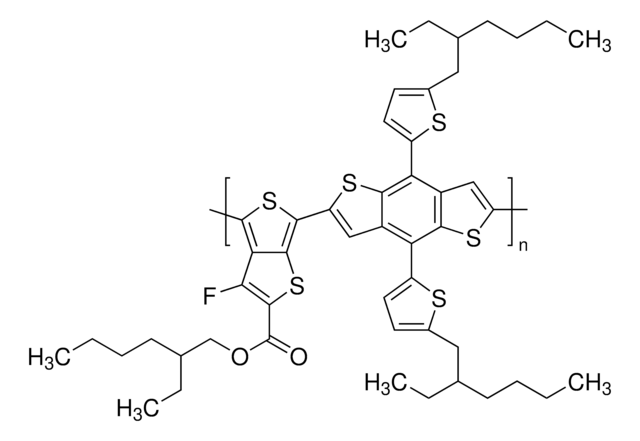

PCE-10, Poly([2,6′-4,8-di(5-ethylhexylthienyl)benzo[1,2-b;3,3-b]dithiophene]{3-fluoro-2[(2-ethylhexyl)carbonyl]thieno[3,4-b]thiophenediyl})

Sign Into View Organizational & Contract Pricing

Select a Size

About This Item

Linear Formula:
(C49H57FO2S6)n
CAS Number:
1469791-66-9
MDL number:
MFCD21363438
UNSPSC Code:
12352103
NACRES:
NA.23

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

description

Band gap: 1.57 eV
Shiny, purple, fiber-like solid

Quality Level

100

form

solid

mol wt

>145,000

solubility

chlorobenzene: soluble
dichlorobenzene: soluble

orbital energy

HOMO -5.38 eV
LUMO -3.81 eV

PDI

2.2

Related Categories

General description

Poly([2,6′-4,8-di(5-ethylhexylthienyl)benzo[1,2-b;3,3-b]dithiophene]{3-fluoro-2[(2-ethylhexyl)carbonyl]thieno[3,4-b]thiophenediyl}) (PTB7-Th) is a semiconducting polymer with a narrow band gap of 1.59 eV and an absorption peak at 780 nm. The devices fabricated from PTB7-Th have been shown to have higher output voltage and short circuit current density than PTB7.

Application

High-Efficiency Organic Solar Cells (OPVs)

OPV Device Structure: ITO/PEDOT:PSS/Polymer:PC71BM/ Al

  • JSC = 19.8 mA/cm2 \
  • VOC = 0.79 V
  • FF = 0.65
  • PCE = 10.12%
PTB7-Th is mainly used as an active layer in organic solar cells (OSCs). It forms a blend with different acceptor materials which include PC71BM, ICBA, and PCBM to potentially improve the power conversion efficiency (PCE) of the OSCs.

Storage Class

11 - Combustible Solids

wgk_germany

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
MKCL9983
MKCK7474
MKCJ2293
MKCD0661
MKBT2240V

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Single-junction polymer solar cells with high efficiency and photovoltage.
He Z, et al.
Nature Photonics, 9(3), 174-174 (2015)
Interfacial materials for organic solar cells: recent advances and perspectives.
Yin Z, et al.
Advanced science (Weinheim, Baden-Wurttemberg, Germany), 3(8), 1500362-1500362 (2016)
Fullerene derivative-doped zinc oxide nanofilm as the cathode of inverted polymer solar cells with low-bandgap polymer (PTB7-Th) for high performance.
Liao S, et al.
Advanced Materials, 25(34), 4766-4771 (2013)
High-performance ternary organic solar cells with thick active layer exceeding 11% efficiency.
Gasparini N, et al.
Energy & Environmental Science, 10(4), 885-892 (2017)
Interface design for high-efficiency non-fullerene polymer solar cells.
Sun C, et al.
Energy & Environmental Science, 10(8), 1784-1791 (2017)
View All Related Papers

Articles

Progress for High Performance Tandem Organic Solar Cells

Professor Chen (Nankai University, China) and his team explain the strategies behind their recent record-breaking organic solar cells, reaching a power conversion efficiency of 17.3%.
