MilliporeSigma

753939

Sigma-Aldrich

DBP

98% (HPLC)

Synonym(s):

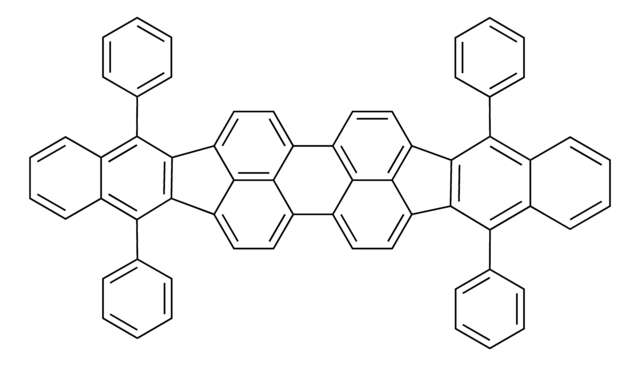

5,10,15,20-Tetraphenylbisbenz[5,6]indeno[1,2,3-cd:1′,2′,3′-lm]perylene, Dibenzo{[f,f′]-4,4′,7,7′-tetraphenyl}diindeno[1,2,3-cd:1′,2′,3′-lm]perylene, Red 2

Sign Into View Organizational & Contract Pricing

Select a Size

About This Item

Empirical Formula (Hill Notation):
C64H36
CAS Number:
175606-05-0
Molecular Weight:
804.97
MDL number:
MFCD20257135
UNSPSC Code:
12352103
NACRES:
NA.23

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Quality Level

100

assay

98% (HPLC)

form

solid

loss

0.5 wt. %, 373 °C

mp

>400 °C

orbital energy

HOMO 5.5 eV (CV)
LUMO 3.5 eV (CV)

OPV device performance

ITO/DBP/C60/BCP/Al

  • Short-circuit current density (Jsc): 6.3 mA/cm2
  • Open-circuit voltage (Voc): 0.92 V
  • Fill Factor (FF): 0.62
  • Power Conversion Efficiency (PCE): 0.36 %

SMILES string

c1ccc(cc1)-c2c-3c(-c4ccc5c6ccc7-c8c(-c9ccc(c%10ccc-3c4c5%10)c6c79)c(-c%11ccccc%11)c%12ccccc%12c8-c%13ccccc%13)c(-c%14ccccc%14)c%15ccccc2%15

InChI

1S/C64H36/c1-5-17-37(18-6-1)53-41-25-13-14-26-42(41)54(38-19-7-2-8-20-38)62-50-34-30-46-48-32-36-52-60-51(35-31-47(58(48)60)45-29-33-49(61(53)62)59(50)57(45)46)63-55(39-21-9-3-10-22-39)43-27-15-16-28-44(43)56(64(52)63)40-23-11-4-12-24-40/h1-36H

InChI key

WPPDXAHGCGPUPK-UHFFFAOYSA-N
