MilliporeSigma

699152

Sigma-Aldrich

Bathocuproine

greener alternative

sublimed grade, 99.99% trace metals basis

Synonym(s):

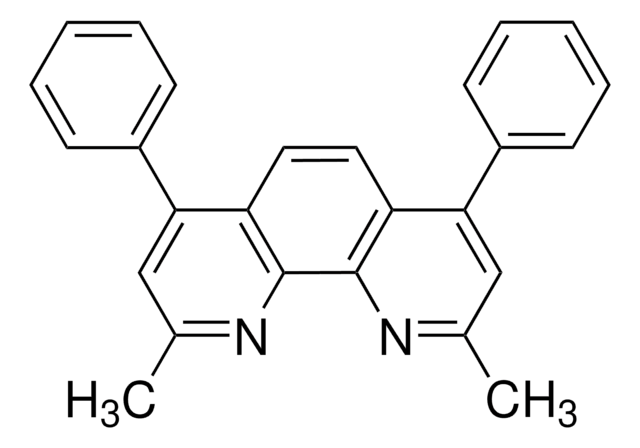

2,9-Dimethyl-4,7-diphenyl-1,10-phenanthroline, BCP

Sign Into View Organizational & Contract Pricing

Select a Size

About This Item

Empirical Formula (Hill Notation):
C26H20N2
CAS Number:
4733-39-5
Molecular Weight:
360.45
Beilstein/REAXYS Number:
306714
EC Number:
225-240-5
MDL number:
MFCD00004972
UNSPSC Code:
12352103
PubChem Substance ID:
329762113
NACRES:
NA.23

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

grade

sublimed grade

Quality Level

200

assay

99.99% trace metals basis

form

powder

greener alternative product characteristics

Design for Energy Efficiency
Learn more about the Principles of Green Chemistry.

sustainability

Greener Alternative Product

mp

279-283 °C (lit.)
285 °C (DSC)

λmax

277 nm

fluorescence

λem 386 nm in THF

orbital energy

HOMO 7 eV
LUMO 3.5 eV

OLED device performance

ITO/CuPc/NPD/TCTA/mCP:Firpic (6%)/BCP/LiF/Al

  • Color: blue
  • Max. EQE: 4.2 %

ITO/NPD/CBP:Ir(ppy)3/BCP/Alq3/Mg:Al
  • Color: green
  • Max. Luminance: 100000 Cd/m2
  • Max. EQE: 8 %
  • Turn-On Voltage: 4.3 V

ITO/NPD/TCTA/BCPO:Ir(piq)3 (7-8%)/BCP/Alq3/LiF/Al
  • Color: red
  • Max. Luminance: 24529 Cd/m2
  • Max. EQE: 17 %
  • Turn-On Voltage: 2.7 V

ITO/NPD/TCTA/BCPO:Ir(ppy)3 (7-8%)/BCP/Alq3/LiF/Al
  • Color: green
  • Max. Luminance: 207839 Cd/m2
  • Max. EQE: 21.6 %
  • Turn-On Voltage: 2.1 V

greener alternative category

, Enabling

SMILES string

Cc1cc(-c2ccccc2)c3ccc4c(cc(C)nc4c3n1)-c5ccccc5

InChI

1S/C26H20N2/c1-17-15-23(19-9-5-3-6-10-19)21-13-14-22-24(20-11-7-4-8-12-20)16-18(2)28-26(22)25(21)27-17/h3-16H,1-2H3

InChI key

STTGYIUESPWXOW-UHFFFAOYSA-N

Looking for similar products? Visit Product Comparison Guide

Related Categories

General description

TGA/DSC Lot specific scans available upon request
We are committed to bringing you Greener Alternative Products, which adhere to one or more of The 12 Principles of Greener Chemistry. This product belongs to Enabling category of greener alternatives thus aligns with "Design for energy efficency". Electron transport organic materials have the chemical functionality to transport electrons and are used as electron transport layer in OLED devices. Click here for more information.

Application

Organic electronic material useful as OLED electron transporter and hole blocker.

pictograms

Exclamation mark
GHS07

signalword

Warning

hcodes

H302,H413

Hazard Classifications

Acute Tox. 4 Oral - Aquatic Chronic 4

Storage Class

11 - Combustible Solids

wgk_germany

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

dust mask type N95 (US), Eyeshields, Faceshields, Gloves
