684465

Sigma-Aldrich

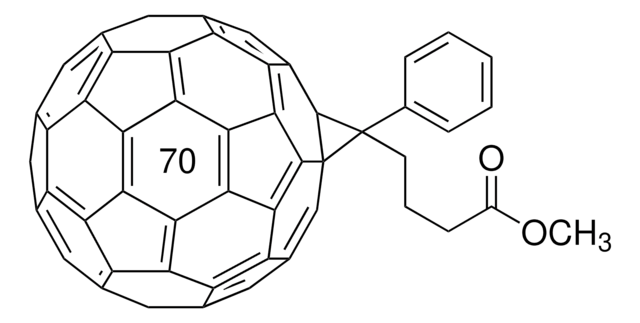

[6,6]-Phenyl C71 butyric acid methyl ester, mixture of isomers

99%

Synonym(s):

3′H-Cyclopropa[8,25] [5,6]fullerene-C70-D5h(6)-3′butanoic acid, 3′Phenyl-3′H-cyclopropa[8,25] [5,6]fullerene-C70-D5h(6)-3′butanoic acid, methyl ester, [70]PCBM

Sign Into View Organizational & Contract Pricing

Select a Size

About This Item

Empirical Formula (Hill Notation):
C82H14O2
CAS Number:
609771-63-3
Molecular Weight:
1030.99
MDL number:
MFCD09842750
UNSPSC Code:
12352103
NACRES:
NA.23

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Quality Level

100

assay

99%

form

powder

solubility

chlorobenzene: soluble
organic solvents: soluble
toluene: soluble

orbital energy

HOMO 6 eV
LUMO 3.9 eV

semiconductor properties

N-type (mobility=0.1 cm2/V·s)

SMILES string

COC(=O)CCCC2(c1ccccc1)C34c5c6ccc7c8cc9Cc%10cc%11cc%12Cc%13cc%14c%15ccc6c3c%15c%16c%17c%18c%19c(c(c57)c8c%20c9c%10c%21c%11c%22c%12c%13c(c%14%16)c%18c%22c%21c%19%20)C24%17

Related Categories

General description

[6,6]-Phenyl C71 butyric acid methyl ester, mixture of isomers ([70]PCBM), is a high fullerene analog to [60]PCBM, which has an enhanced absorption of light in the visible region. It can be used in the development of electrochemical devices with a high current density.

Application

[70]PCBM and PCDTBT can be used as an acceptor and donor based fullerene derivative, which can be used in the fabrication of organic photovoltaics. It may be used with P3HT as an electron transporting material for the fabrication of solar cells with higher power efficiency.
[70]PCBM can be blended with a variety of electron donors, which include P3HT and MDMO-PPV, for the fabrication of polymeric solar cells with a high power conversion efficiency (PCE). It can also be used in the organic field effect transistor (OFET) based applications.

Storage Class

11 - Combustible Solids

wgk_germany

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

dust mask type N95 (US), Eyeshields, Gloves

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
MKCL3062
MKCJ2341
MKCG7648
MKCG1237
MKBZ9540V

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Analysis and modification of defective surface aggregates on PCDTBT: PCBM solar cell blends using combined Kelvin probe, conductive and bimodal atomic force microscopy.
Noh H, et al.
Beilstein Journal of Nanotechnology, 8(72), 579-579 (2017)
Regioisomer effects of (70) PCBM on film structures and photovoltaic properties of composite films with a crystalline conjugated polymer P3HT.
Umeyama T, et al.
Royal Society of Chemistry Advances, 7(72), 45697-45704 (2017)
Anthopoulos, T. Leeuw, de D. et al.
Journal of Applied Physics, 98, 54503-54503 (2005)
Wienk, M.; Kroon, J. et al.
Angewandte Chemie (International Edition in English), 115, 3493-3493 (2003)
Highly efficient organic thin-film solar cells based on poly (3-hexylthiophene) and soluble C70 fullerene derivative
Yamanari T, et al.
Japanese Journal of Applied Physics, 47(2S), 1230-1230 (2008)
