Xantphos

97%

Synonym(s):

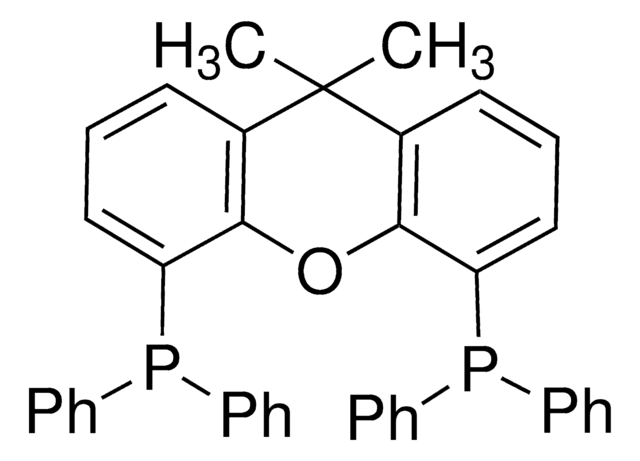

4,5-Bis(diphenylphosphino)-9,9-dimethylxanthene

Sign Into View Organizational & Contract Pricing

Select a Size

About This Item

Empirical Formula (Hill Notation):
C39H32OP2
CAS Number:
161265-03-8
Molecular Weight:
578.62
MDL number:
MFCD00233866
UNSPSC Code:
12352005
PubChem Substance ID:
24874555
NACRES:
NA.22

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Quality Level

300

assay

97%

reaction suitability

reaction type: Cross Couplings
reagent type: ligand
reaction type: Buchwald-Hartwig Cross Coupling Reaction
reagent type: ligand
reaction type: C-X Bond Formation
reagent type: ligand
reaction type: Hydroformylations
reagent type: ligand
reaction type: Miyaura Borylation Reaction
reagent type: ligand
reaction type: Stille Coupling
reagent type: ligand
reaction type: Suzuki-Miyaura Coupling

mp

224-228 °C (lit.)

functional group

phosphine

SMILES string

CC1(c2c(Oc3c1cccc3P(c4ccccc4)c5ccccc5)c(P(c6ccccc6)c7ccccc7)ccc2)C

InChI

1S/C39H32OP2/c1-39(2)33-25-15-27-35(41(29-17-7-3-8-18-29)30-19-9-4-10-20-30)37(33)40-38-34(39)26-16-28-36(38)42(31-21-11-5-12-22-31)32-23-13-6-14-24-32/h3-28H,1-2H3

InChI key

CXNIUSPIQKWYAI-UHFFFAOYSA-N

Related Categories

General description

Xantphos is a bidentate ligand that is employed in various metal-catalyzed reactions, including cross-couplings, Buchwald-Hartwig cross-coupling reactions, C-X bond formation, hydroformylation, Miyaura borylation reaction, Stille coupling, Suzuki-Miyaura coupling, (hetero)arylation, amination, and amidation.

For small scale and high throughput uses, product is also available as ChemBeads (928356)

Application

Ligand used in a synthesis of heterocycles by palladium-catalyzed C-N cross coupling of 3-bromothiophenes with 2-aminopyridines. Also used in a ruthenium-catalyzed alkylation of active methylene compounds with alcohols.
Metal chelating ligand for catalysis.

pictograms

Exclamation mark
GHS07

signalword

Warning

Hazard Classifications

Eye Irrit. 2 - Skin Irrit. 2 - STOT SE 3

target_organs

Respiratory system

Storage Class

11 - Combustible Solids

wgk_germany

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

Eyeshields, Gloves, type N95 (US)

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
WXBD4701V
WXBC8838V
SHBK1999
SHBJ9388

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Sarah Keller et al.
Photochemical & photobiological sciences : Official journal of the European Photochemistry Association and the European Society for Photobiology, 17(4), 375-385 (2018-02-20)
The heteroleptic complexes [Cu(tBu-xantphos)(bpy)][PF6] and [Ag(tBu-xantphos)(bpy)][PF6], where tBu-xantphos = 9,9-dimethyl-4,5-bis(di-tert-butylphosphino)xanthene and bpy = 2,2'-bipyridine have been synthesized and their photophysical properties investigated. Single crystal X-ray diffraction studies of the compounds under ambient and increased pressure are presented; increase in pressure
Peter J Manley et al.
Organic letters, 6(14), 2433-2435 (2004-07-02)
[reaction: see text] An alternative to the Friedlander condensation for the synthesis of naphthyridinones and quinolinones has been discovered. Palladium-catalyzed amidation of halo aromatics substituted in the ortho position by a carbonyl functional group or its equivalent with primary or
Joseph R Martinelli et al.
Organic letters, 8(21), 4843-4846 (2006-10-06)
[reaction: see text] The direct transformation of aryl bromides into the corresponding Weinreb amides via Pd-catalyzed aminocarbonylation at atmospheric pressure is reported.
Guang-Yao Gao et al.
Organic letters, 6(11), 1837-1840 (2004-05-21)
A series of meso-amidoporphyrins were facilely synthesized by direct reactions of meso-brominated porphyrins with amides via palladium-catalyzed amidation reaction. Using a combination of palladium precursor Pd(OAc)(2) or Pd(2)(dba)(3) and phosphine ligand Xantphos, both 5-bromo-10,20-diphenylporphyrin and 5,15-dibromo-10,20-diphenylporphyrin, as well as their
Synthesis, 2794-2794 (2006)
View All Related Papers
