483028

Sigma-Aldrich

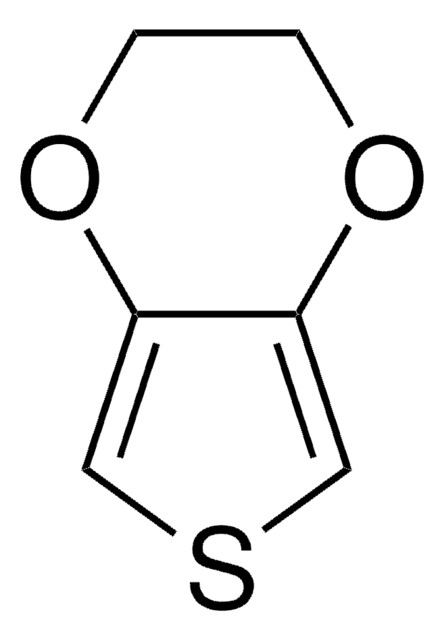

3,4-Ethylenedioxythiophene

97%

Synonym(s):

2,3-Dihydrothieno[3,4-b]-1,4-dioxin, EDOT

Sign Into View Organizational & Contract Pricing

Select a Size

About This Item

Empirical Formula (Hill Notation):
C6H6O2S
CAS Number:
126213-50-1
Molecular Weight:
142.18
MDL number:
MFCD02093622
UNSPSC Code:
12352103
PubChem Substance ID:
24871861
NACRES:
NA.23

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

assay

97%

refractive index

n20/D 1.5765 (lit.)

bp

193 °C (lit.)

density

1.331 g/mL at 25 °C (lit.)

storage temp.

2-8°C

SMILES string

C1COc2cscc2O1

InChI

1S/C6H6O2S/c1-2-8-6-4-9-3-5(6)7-1/h3-4H,1-2H2

InChI key

GKWLILHTTGWKLQ-UHFFFAOYSA-N

Related Categories

General description

3,4-Ethylenedioxythiophene (EDOT) is an electro-active conductive monomer with a thiol group that combines an electron donor and electron acceptor in a donor-acceptor-donor arrangement.
Monomer used in the synthesis of conducting polymers.

Application

EDOT can be polymerized to form poly(3,4-ethylenedioxythiophene) (PEDOT) for use as an electrochromic polymer (EC) based coating for a variety of applications like solid state organic electrochemical supercapacitors (OESCs), electrochromic devices (ECDs), and carbon nanotubes (CNTs) based electrochemical devices for diabetes monitoring.
It can be used:
  • As a reductant in a one-pot synthesis of gold nanoparticles from HAuCl4 (254169).
  • As a starting material used in palladium-catalyzed mono- and bis-arylation reactions.
  • In the synthesis of conjugated polymers and copolymers, with potential optical applications.

pictograms

Skull and crossbones
GHS06

signalword

Danger

Hazard Classifications

Acute Tox. 3 Dermal - Acute Tox. 4 Oral - Eye Irrit. 2

Storage Class

6.1C - Combustible acute toxic Cat.3 / toxic compounds or compounds which causing chronic effects

wgk_germany

WGK 2

flash_point_f

219.2 °F - closed cup

flash_point_c

104 °C - closed cup

ppe

Eyeshields, Faceshields, Gloves, type ABEK (EN14387) respirator filter

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
WXBD6597V
WXBD5292V
WXBD1350V
WXBC8141V
WXBC8599V

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Shaivya Gupta et al.
Materials science & engineering. C, Materials for biological applications, 103, 109733-109733 (2019-07-28)
Helicobacter pylori (H. pylori) immunosensor based on platinum nanoparticles/poly(3,4-ethylenedioxythiophene)/reduced graphene oxide (Ptnano/PEDOT/red-GOx) modified gold electrode (Au-ET) was stepwise fabricated for the detection of cytotoxin-associated gene A antibody (CagA antibody). H. pylori is a microaerophillic and a Gram-negative bacteria that causes
Fei Li et al.
Advanced science (Weinheim, Baden-Wurttemberg, Germany), 6(20), 1901051-1901051 (2019-10-23)
The rapid development of microelectronics has equally rapidly increased the demand for miniaturized energy storage devices. On-chip microsupercapacitors (MSCs), as promising power candidates, possess great potential to complement or replace electrolytic capacitors and microbatteries in various applications. However, the areal
Hnin Yin Yin Nyein et al.
Science advances, 5(8), eaaw9906-eaaw9906 (2019-08-28)
Recent technological advancements in wearable sensors have made it easier to detect sweat components, but our limited understanding of sweat restricts its application. A critical bottleneck for temporal and regional sweat analysis is achieving uniform, high-throughput fabrication of sweat sensor
Aiva Simaite et al.
Nanotechnology, 28(2), 025502-025502 (2016-12-03)
During cyclic actuation, conducting polymer based artificial muscles are often creeping from the initial movement range. One of the likely reasons of such behaviour is unbalanced charging during conducting polymer oxidation and reduction. To improve the actuation reversibility and subsequently
Towards sustainable solid-state supercapacitors: electroactive conducting polymers combined with biohydrogels.
Perez-Madrigal MM, et al.
Journal of Material Chemistry A, 4(5), 1792-1805 (2016)
View All Related Papers

Articles

Self healable PEDOT based film hydrogel and OECT devices

Advancements in bioelectronics, incorporating self-healing materials for wearable devices, and measuring bioelectric signals to assess physiological parameters.

Conjugated Polymers for the Engineering of Device/Tissue Interface

Conjugated polymers offer charge transport between inorganic, electrically conducting metals and organic, proton-conducting biological systems.
