427152

Poly(vinylidene fluoride)

average Mw ~180,000 by GPC, average Mn ~71,000, beads or pellets

Synonym(s):

PVDF

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

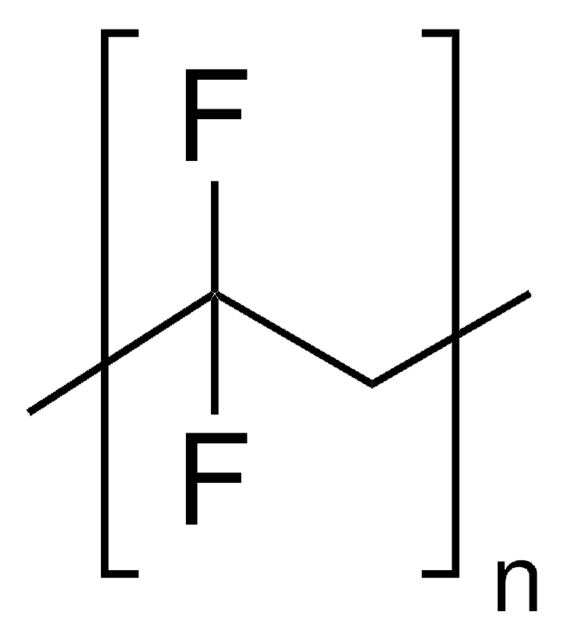

Linear Formula:
(CH2CF2)n
CAS Number:
24937-79-9
NACRES:
NA.23
PubChem Substance ID:
24866740
UNSPSC Code:
12162002
MDL number:
MFCD00084470
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

vapor pressure

15 mmHg ( 32 °C)

Quality Level

100

form

beads or pellets

melt index

20-35 g/10 min (230°C/3.8kg)

mol wt

average Mn ~71,000, average Mw ~180,000 by GPC

impact strength

2-4 ft-lb/in. (Izod, ASTM D 256, notched)

dielectric constant

8.0-9.5, 100 Hz (ASTM D 150)

hardness

76-80 (Shore D, ASTM D 2240)

refractive index

n20/D 1.42

ASTM D 3835

6,000-7,500 poise(230 °C) (100 sec-1)(lit.)

transition temp

brittleness temperature -62 °C (ASTM D 746), Tm 155-165 °C

solubility

some polar solvents such as organic esters and amines: soluble

density

1.78 g/mL at 25 °C

SMILES string

FC(F)=C

InChI

1S/C2H2F2/c1-2(3)4/h1H2

InChI key

BQCIDUSAKPWEOX-UHFFFAOYSA-N

Application

Coatings, film, filter cloth, instrument linings, filtration membranes, pump parts and linings and valves.

Features and Benefits

Crystallizes in at least 3 forms, depending on crystallization conditions. High mechanical strength,abrasion resistance and dielectric strength. Resists most chemicals, UV radiation, weathering and fungi.

Still not finding the right product?

Explore all of our products under Poly(vinylidene fluoride)

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

Eyeshields, Gloves, type N95 (US)
